PRODUCTS

INTERFERENCE SUPPRESSION


X2 Capacitor

 FEATURE

1.Class : X2

2.Ideal for using in Line-By-Pass, Antenna Coupling. Across-The-Line and Spark killer circuits and available for EMI filter and switching power supply and radio-and monitor, television application.

3.Approved By : VDE、UL、CUL、CQC、ENEC、KC、CSA

INTERFERENCE SUPPRESSION

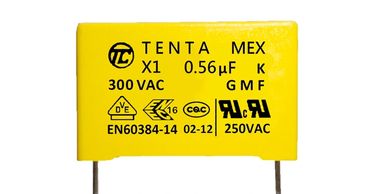

X1 Capacitor

FEATURE

1.Class : X1

2.Ideal for using in Line-By-Pass, Antenna Coupling. Across-The-Line and Spark killer circuits and available for EMI filter and switching power supply and radio-and monitor, television application.

3.Approved By : UL、CUL、VDE、CQC、ENEC

MEXY

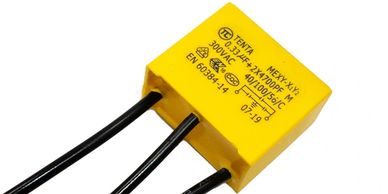

X+Y Capacitor

FEATURE

1.Space saving PWB capacitor network has one X & two Y caps.

2. Excellent common and different mods capability in a wide capacitance range.

3.Installed cost saving with single package design.

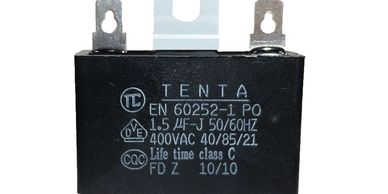

Motor Running Capacitor


TCP

1.Its Design to be used for motors of exhaust fan AC motor etc.

2.Its Terminal have Solder type, TC insertion type and leader wire type etc.

3.Approvsd by : VDE、UL、CUL、IEC EN60252 S3 class

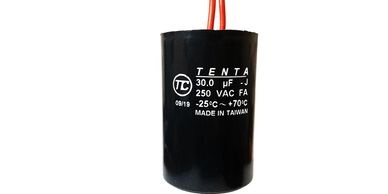

Motor running capacitor


TCPR

1.Its Design to be used for Pump /  motors of exhaust fan AC motor etc.

2.Its Terminal have Solder type, TC insertion type and leader wire type etc.

3.Approvsd by : VDE、UL、CUL、IEC EN60252 S3 class

INTERFERENCE SUPPRESSION

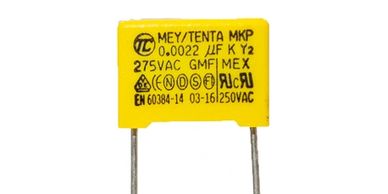

Y2 Capacitor

 FEATURE

1.class Y2

2.Flame retardent plastic cases and epoxy resin.

3.self-healing properties.

Approved by : VDE、UL、CUL、CSA

Axial Capacitor


Axial

Polyester /  Polypropylene

FEATURE

1.Dissipation Factor is normaly low and its stable against high frequency and change of temperature.

2.High reliable because of its excellent self-Healing performance.

3.Recommended for High-frequency circuits like s-curve compensating circuit.

Metallized Film Capacitor


MER / MPR

Polyester /  Polypropylene

FEATURE

1.Dissipation Factor is normaly low and its stable against high frequency and change of temperature.

2.High reliable because of its excellent self-Healing performance.

3.Recommended for High-frequency circuits like s-curve compensating circuit.

Metallized Film Capacitor


 Metallized Polyester Film Capacitor

Mini Size

Capacitance Range : 0.001uF~1.0uF

Rated Voltage : 100V~630V

Pitch : 5 / 7.5 (mm)
