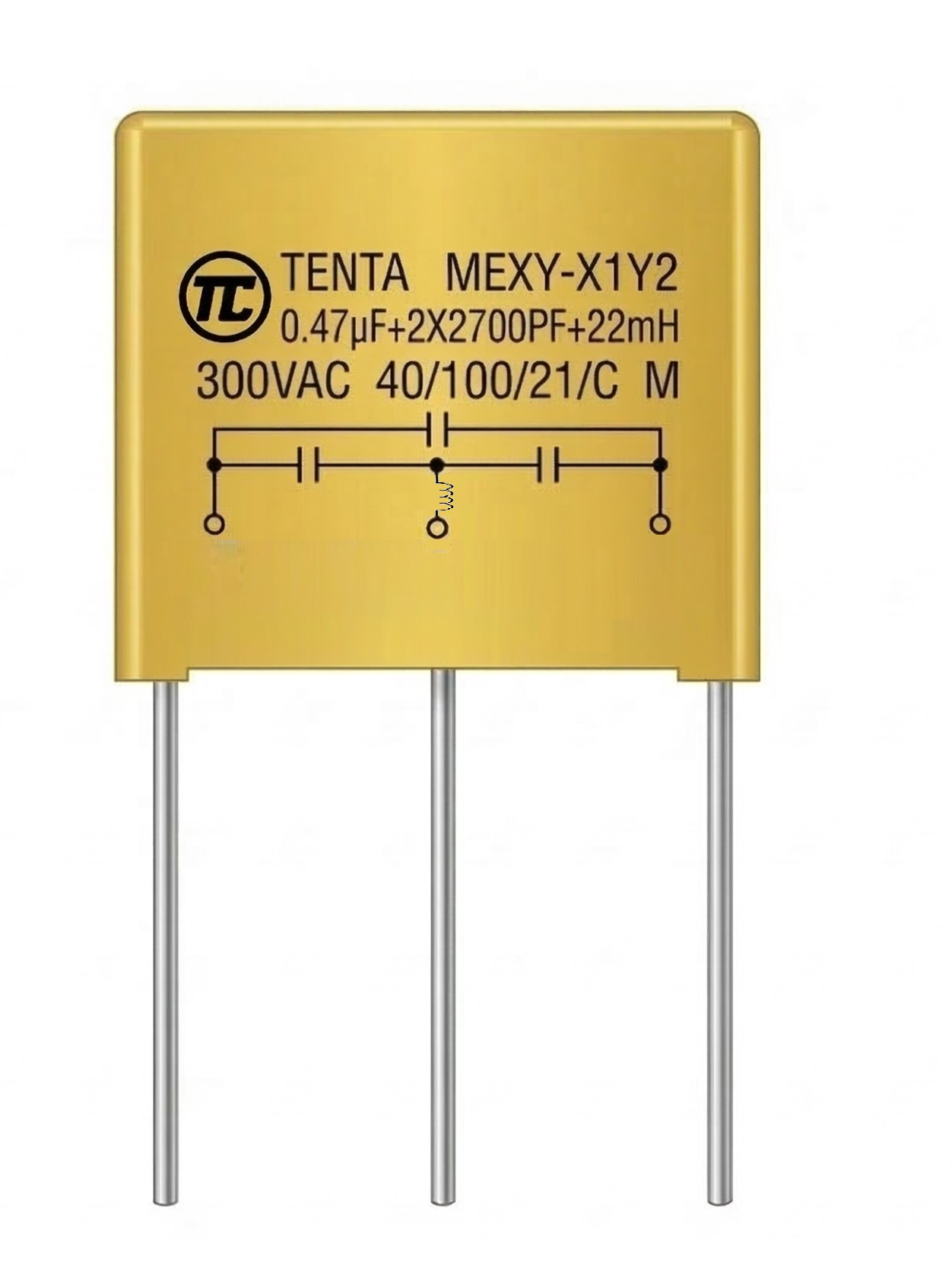

TYPE: MEXYC
濾波型電容器 (MEXY with Choke)
Filter Capacitor (MEXY with Choke)
工作溫度-40 ~ +100°C
額定電壓275VAC
電容量範圍0.1~0.47 μF + 2×2700pF + 10~22 μH
特點 / Features
1
一般用途，產品體積小，可靠性高，成本低
General purpose, compact design, lower cost.
2
多種內部零件組合，可廣泛應用於各種電子設備產品
More option of components value to different applications.
3
多項國際安規認證
Fully safety approvals: Fimko, CB.
技術參數 / Specifications
工作溫度 OPERATING TEMPERATURE | -40 ~ +100°C |
額定電壓 RATED VOLTAGE | 275VAC |
電容量範圍 CAPACITANCE RANGE | 0.1~0.47 μF + 2×2700pF + 10~22 μH |
耐電壓 TEST VOLTAGE | 175% of rated voltage for 5 sec |
電容量誤差 CAPACITANCE TOLERANCE | ±20% |
絕緣電阻 INSULATION RESISTANCE | XY Cap ≤ 0.33μF min 15,000MΩ XY Cap > 0.33μF min 6,000MΩ·μF |
損耗角 DISSIPATION FACTOR | 0.1% max. (at 1KHz) |
規格尺寸表 / Dimensions
(Unit: mm)
共 10 筆規格
| Class-X | Class-Y | Choke | W | H | T |
|---|---|---|---|---|---|
| 0.10μF X1 | 2x2700pF Y2 | 10μH | 26.5 | 22 | 12 |
| 0.15μF X1 | 2x2700pF Y2 | 10μH | 26.5 | 23 | 13 |
| 0.22μF X1 | 2x2700pF Y2 | 10μH | 31 | 25 | 14 |
| 0.33μF X1 | 2x2700pF Y2 | 10μH | 32 | 30 | 15 |
| 0.47μF X1 | 2x2700pF Y2 | 10μH | 31 | 33 | 18 |
| 0.10μF X1 | 2x2700pF Y2 | 15μH | 26.5 | 22 | 12 |
| 0.15μF X1 | 2x2700pF Y2 | 15μH | 26.5 | 23 | 13 |
| 0.22μF X1 | 2x2700pF Y2 | 22μH | 31 | 25 | 14 |
| 0.33μF X1 | 2x2700pF Y2 | 22μH | 32 | 30 | 15 |
| 0.47μF X1 | 2x2700pF Y2 | 22μH | 31 | 33 | 18 |
Class-X0.10μF X1
Class-Y2x2700pF Y2
Choke10μH
W26.5
H22
T12
Class-X0.15μF X1
Class-Y2x2700pF Y2
Choke10μH
W26.5
H23
T13
Class-X0.22μF X1
Class-Y2x2700pF Y2
Choke10μH
W31
H25
T14
Class-X0.33μF X1
Class-Y2x2700pF Y2
Choke10μH
W32
H30
T15
Class-X0.47μF X1
Class-Y2x2700pF Y2
Choke10μH
W31
H33
T18
Class-X0.10μF X1
Class-Y2x2700pF Y2
Choke15μH
W26.5
H22
T12
Class-X0.15μF X1
Class-Y2x2700pF Y2
Choke15μH
W26.5
H23
T13
Class-X0.22μF X1
Class-Y2x2700pF Y2
Choke22μH
W31
H25
T14
Class-X0.33μF X1
Class-Y2x2700pF Y2
Choke22μH
W32
H30
T15
Class-X0.47μF X1
Class-Y2x2700pF Y2
Choke22μH
W31
H33
T18
